- Panasonic air conditioner PACi ceiling PT S-71PT2E5A 7.1KW
Ceiling-mounted units

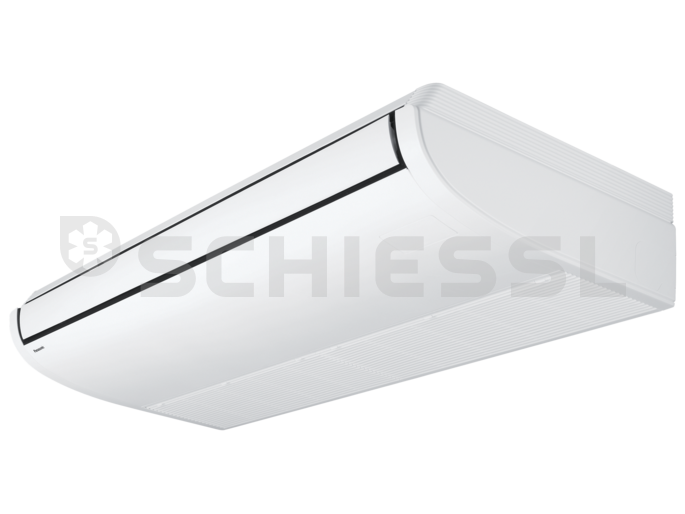

Panasonic air conditioner PACi ceiling PT S-71PT2E5A 7.1KW
Icon. Image similar to product.
Description
The DC fan motor for the flush mounted ceiling unit provides better energy efficiency and is exceptionally quiet. All devices have the same height and depth so that a uniform visual appearance is achieved when installing different devices. For improved air quality, the units feature a pre-cut ...
The DC fan motor for the flush mounted ceiling unit provides better energy efficiency and is exceptionally quiet. All devices have the same height and depth so that a uniform visual appearance is achieved when installing different devices. For improved air quality, the units feature a pre-cut opening for a fresh air connection.
Features
- All units just 235 mm tall
- Low vibration and operating noises using double piston compressor
- DC inverter controlled
- Wide air guide in horizontal and vertical orientations
- Low noise
- Simple connection to an external ventilation unit or enthalpy heat exchanger (ERV) via PAW-FDC plug connection on the ...
- All units just 235 mm tall
- Low vibration and operating noises using double piston compressor
- DC inverter controlled
- Wide air guide in horizontal and vertical orientations
- Low noise
- Simple connection to an external ventilation unit or enthalpy heat exchanger (ERV) via PAW-FDC plug connection on the control board of the indoor unit. The outdoor unit can be turned on an off using the remote control for the Panasonic indoor unit
- Additional models are listed here for dual, trio and quattro systems as well as models with a rated power of 4.5 kW.
Technical data
Dimensions
Width
1275 mm
Height
235 mm
Depth
690 mm
Electrical Data
Supply voltage
230/1/50 V/Ph/Hz
Weight
Weight net
33 kg
Performance data
Dehumidification
4,2 l/h
Luftmenge
Heizen
(Niedrig/Mittel/Hoch)
(Niedrig/Mittel/Hoch)
930 / 1080 / 1260 m³/h
Kühlen
(Niedrig/Mittel/Hoch)
(Niedrig/Mittel/Hoch)
930 / 1080 / 1260 m³/h
Nominal heating capacity
7,10 kW
Nominal cooling capacity
7,1 kW
Nominal power consumption
Heating
1,82 kW
Cooling
2,21 kW
Sound data
Schalldruckpegel
Heizen
(Niedrig/Mittel/Hoch)
(Niedrig/Mittel/Hoch)
31 / 35 / 39 dB(A)
Kühlen
(Niedrig/Mittel/Hoch)
(Niedrig/Mittel/Hoch)
31 / 35 / 39 dB(A)
Sound power
Heating (high)
57 dB(A)
Cooling (high)
57 dB(A)
Technical modifications reserved. Product images may differ from the actual product and are meant for demonstration purposes only. Absolutely no liability can be assumed for possible indication errors and errors in the manufacturers’ information.
