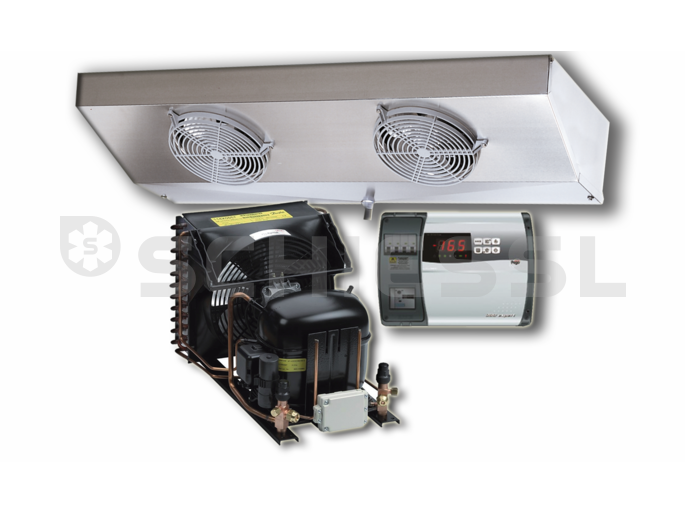

Refrigeration set Economy NC / R134a 20m3 OP-U(M)CGC034GSA01G/RSV2200605ED/ECP202E
Description
The Premium refrigeration sets for normal cooling are available for room volumes 7.5, 10, 15 and 20 m3. They consist of premium products from leading manufacturers:
• Condensing unit
• Pressure switch
• Injection valve with nozzle
• Solenoid valve with coil
• Inspection ...
The Premium refrigeration sets for normal cooling are available for room volumes 7.5, 10, 15 and 20 m3. They consist of premium products from leading manufacturers:
• Condensing unit
• Pressure switch
• Injection valve with nozzle
• Solenoid valve with coil
• Inspection glass
• Filter dryer
• Cooling controller box
• Speed regulator (optional)
• Air cooler
Scope of delivery and technical data can be found in the brochure “Premium Refrigeration Sets 2019” under Downloads below!
Features
The refrigeration sets for normal cooling are intended for use with R134a refrigerant (also approved for R513A).
Cell: PU 100 mm insulation with base
Room temperature +2 °C
Chilled goods: Meat, general
Capacity: 100 kg/m2
Intake: approx. 15% of capacity
Goods chill down: 10 K
Ambient ...
The refrigeration sets for normal cooling are intended for use with R134a refrigerant (also approved for R513A).
Cell: PU 100 mm insulation with base
Room temperature +2 °C
Chilled goods: Meat, general
Capacity: 100 kg/m2
Intake: approx. 15% of capacity
Goods chill down: 10 K
Ambient temperature, cell: 28 °C
Ambient temperature, condenser unit: 32 °C
Rate of air exchange: adapted to room size
Operating time per day: 16 h
Scope of delivery
1. Danfoss Verflüssigungssatz - OP-U(M)CGC34GSA01G - „OptymaTM“
2. Rivacold Luftkühler mit Heizung - RSV2200605ED - „RSV“ Serie
3. Pego Schaltkasten1 elektronisch - ECP 202 Expert
4. Danfoss Hoch/Niederdruckschalter - „KP17W DWK+NDW“
5. Danfoss Ventilkörper R134a - „TEN2 N“ ...
1. Danfoss Verflüssigungssatz - OP-U(M)CGC34GSA01G - „OptymaTM“
2. Rivacold Luftkühler mit Heizung - RSV2200605ED - „RSV“ Serie
3. Pego Schaltkasten1 elektronisch - ECP 202 Expert
4. Danfoss Hoch/Niederdruckschalter - „KP17W DWK+NDW“
5. Danfoss Ventilkörper R134a - „TEN2 N“ Löt 12mm
6. Danfoss Düseneinsatz für T2/TE2 - Größe 02 „068-2003“
7. Danfoss Magnetventil mit Spule - „EVR3“ 10mm Löt
8. Danfoss Schauglas mit Indikator 52 bar - „SGP 10FN i/a“
9. Danfoss Filtertrockner - „DML053“
10. Danfoss Drehzahlregler - „XGE-4C“ - als Option wählbar mit Aufpreis!
Annotation
Due to persistent delivery problems on the part of Danfoss, we cannot offer you this product in the usual time.
Alternatively, however, you can choose an equivalent product with Alco valves.
Accessories / Replacement parts
-
Speed regulator
