Vacuum pumps

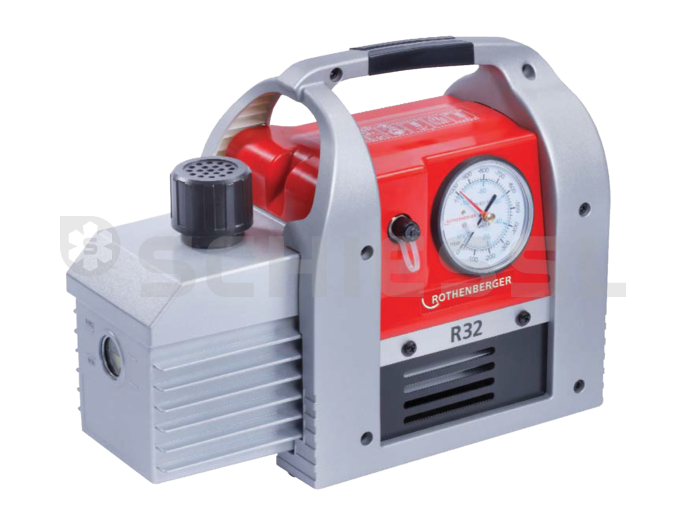

Rothenberger vacuum pump ROAIRVAC R32 6.0 170 l/min
Icon. Image similar to product.
Icon. Image similar to product.
Icon. Image similar to product.
Icon. Image similar to product.
Order No.: 411.8407
Manufacturer number: 1000001231
Manufacturer: Rothenberger
More in this category: Vacuum pumps
One click to the most important information:
Description
The Rothenberger ROAIRVAC R32 6.0 is used for evacuating all refrigerant circuits according to DIN 8975. The two-stage rotary vane pump achieves a vacuum of less than 25 microns. You can use the ROAIRVAC R32 6.0 in systems using refrigerants in classes A1, A2L (e.g. R32 and R1234yf) and A2.
Features
- Internal components protected by lightweight and high-quality housing
- Solenoid check valve for protecting the refrigerant circuit from oil contamination during power outage
- Vacuum gauge with integrated trailing pointer for quickly and easily monitoring the evacuation process
- Gas ballast valve to ...
- Internal components protected by lightweight and high-quality housing
- Solenoid check valve for protecting the refrigerant circuit from oil contamination during power outage
- Vacuum gauge with integrated trailing pointer for quickly and easily monitoring the evacuation process
- Gas ballast valve to reduce water vapour in the oil container
- Special filter reduces oil mist at the outlet adapter
- Thermal switch protects the motor from overheating
- Standard 1/4” SAE connection as well as 5/16” SAE and 3/8” SAE adapters included
- Removable power cable prevents cable damage
- Also suitable for easily flammable refrigerants such as R32
Scope of delivery
1x ROAIRVAC 6.0
1x zweistufige Drehschieberpumpe 230V, 170 l/min, 375W
1x Standard 1/4" SAE Anschluss,
1x 5/16" SAE Adapter
1x 3/8" SAE Adapter
Accessories / Replacement parts
-
Vacuum pump oil
Technical data
Dimensions
Width
235 mm
Height
390 mm
Length
465 mm
General information
Number of stages
2 Level(s)
Type
Roairvac R32
Connections
Tube connection
7/16" UNF
Pressure
Vacuum
15 Micron
Electrical Data
Frequency range
50 bis 60 Hz
Supply voltage
230/1/50 V/Ph/Hz
Weight
Weight net
17,3 kg
Performance data
Motor
Power
550 W
Suction capacity
170
l/min
Volume
Oil charge
580 ml
Technical modifications reserved. Product images may differ from the actual product and are meant for demonstration purposes only. Absolutely no liability can be assumed for possible indication errors and errors in the manufacturers’ information.
